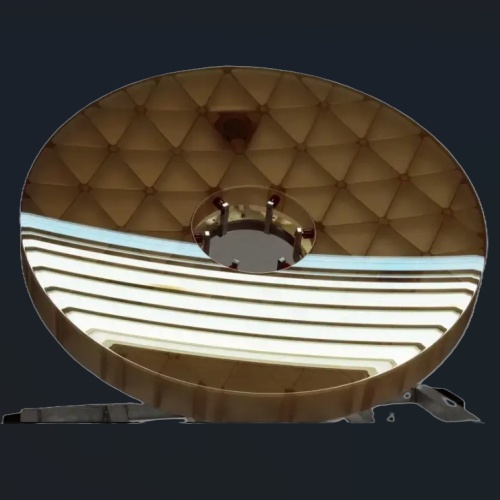

Zerodur is one of Low Expansion Glass, which is used for Telescope Mirror Blank in monolithic and segmented telescopes. As well as low thermal expansion (any fluctuation in temperature due to environmental changes would obfuscate telescope images), the easy machinability and polishing properties of Zerodur make it ideal for high precision Optical Components. Space applications such as astronomy and earth observation require light and strong materials. MG-optics offers light-weighted Zerodur mirror substrates and Zerodure Aspheric Mirror in some satellite telescopes.
Capabilities

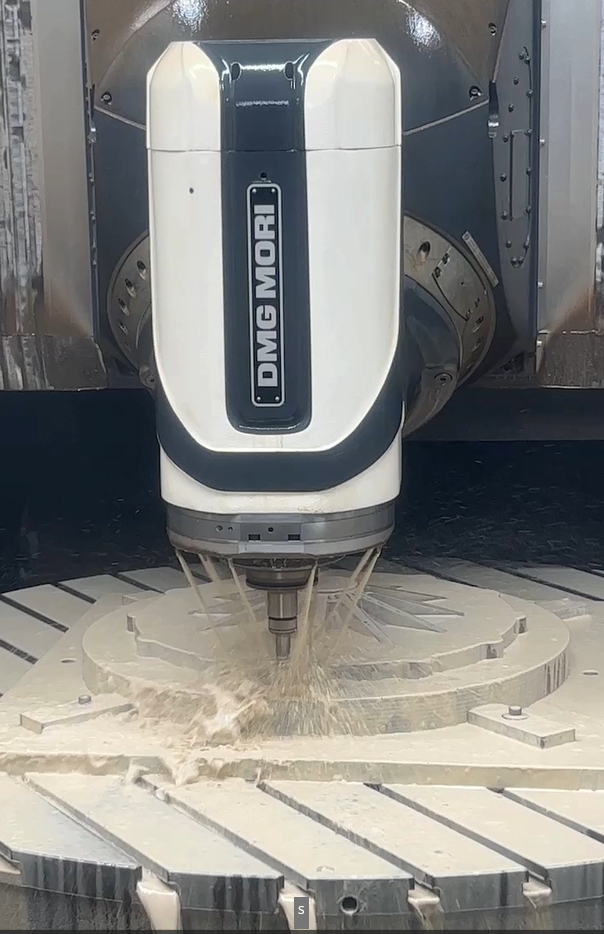

Precision Forming: DMG 125P and 210P support the diameter of 1500mm milling machine and lightweight structure shaping can be precision controlled.
SPECIFICATIONS
| FEATURES | SPECIFICATIONS |
| Material Options | |
| Size | 50 mm - 2000mm |
| Surface Accuracy | 1/100 RMS or better |
| Roughness | Up to 1 nm |
| Coating | Al, Ag, Au & High Laser Damage Threshold Dielectic as needed |
| Design Services | Optical, FEA, Dynamic & Thermal Analysis |
MG-Optics will also provide you custom CGH for Optical Test of aspheric mirror.
If you are interested with our products, Just send us your drawings or specifications, we will begin preparing a quotation for you.
