Silicon Infrared Aspheric Lens
Get Latest PricePayment Type: | T/T |
Incoterm: | FOB,CFR,CIF,EXW,FAS |
Min. Order: | 1 Piece/Pieces |
Transportation: | Land,Air,Express |
Payment Type: | T/T |
Incoterm: | FOB,CFR,CIF,EXW,FAS |
Min. Order: | 1 Piece/Pieces |
Transportation: | Land,Air,Express |
Place Of Origin: China
Selling Units | : | Piece/Pieces |
The file is encrypted. Please fill in the following information to continue accessing it

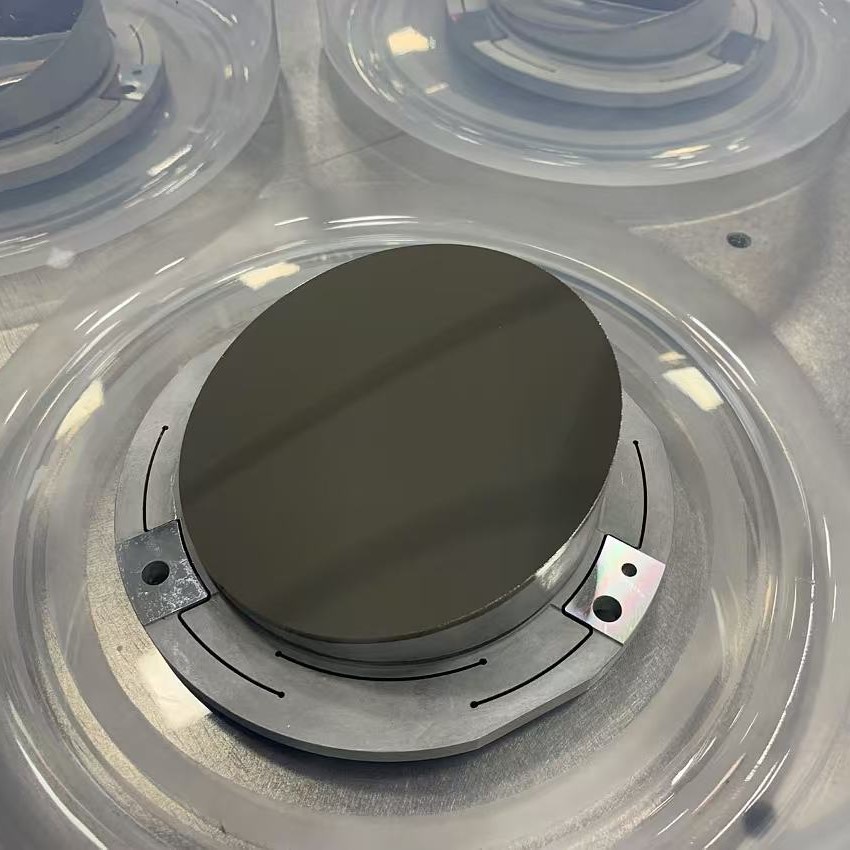

Silicon Infrared Aspheric Optical Lens are advanced Optical Components that leverages the unique properties of silicon and the benefits of aspherical design to provide superior performance in infrared imaging and sensing applications.
Silicon, a material known for its excellent transmission properties in the IR spectrum, particularly in the mid-wave infrared (MWIR) and long-wave infrared (LWIR) regions. It can transmit wavelengths ranging from about 1.1 μm to 8 μm.
Si aspheric Lens are widely used in various applications including thermal imaging, night vision systems, surveillance cameras, medical diagnostics, environmental monitoring, and other Optical System for scientific research equipment.
Silicon lenses are optical components manufactured from monocrystalline silicon, a semiconducting material which is transparent in the infrared region, between 1.2µm to 15µm. It also transmits again above 50µm. Due to silicon’s low density and low dispersion, it is often used in weight-sensitive and more compact optical systems, especially in thermal imaging systems and infrared cameras working in the NIR and MWIR regions.
Specification:
Material | Si |
Specification | Customized |
Diameter Range | 50mm~600mm |
Aspheric turning diameter | 50mm~600mm |
Diameter Tolerance | 0.03mm |
Center Thickness Tolerance | 0.02mm |
Surface Quality | 20/10, 10/5 |
Surface Accuracy | 3/10 λ |
Surface Roughness | Ra≤0.04μm |
MG-Optics will also provide you other IR And UV Optics, such as ZnSe, ZnS, CaF2, Ge Aspheric Mirror. If you are interested with our products, Just send us your drawings or specifications, we will begin preparing a quotation for you.
Contact with our professional technician engineer now!
