RSA-6061 Al mirror
RSA-6061 Al mirror
RSA-6061 Al mirror
RSA-6061 Al mirror
RSA-6061 Al mirror
RSA-6061 Al mirror
RSA-6061 Al mirror
RSA-6061 Al mirror

RSA-6061 Al mirror

Get Latest Price
Payment Type:T/T
Incoterm:FOB,CIF,EXW,CFR,FCA,Express Delivery
Min. Order:1 Piece/Pieces
Transportation:Ocean,Air,Land,Express
Product Attributes

Place Of OriginChina

Packaging & Delivery
Selling Units : Piece/Pieces
Package Type : expert production package
Picture Example :

The file is encrypted. Please fill in the following information to continue accessing it

Ion Beam figuring for high precision optics
Product Description

MG-Optics manufactures high precision Optical Metallic Aspheric Mirrors, the flagship product is Aluminum Aspheric Mirror. The size is from 50 mm to 600mm, materials including RSA-6061, Ni-P Alloys, Cu etc. MG Optics can offer custom manufacturing, 1/100 RMS or better. The lightweight structure design can be also provided.

SPECIFICATIONS

FEATURES SPECIFICATIONS
Material Options RSA-6061, Ni-P Alloys, Cu etc.
Size 50mm-600mm
RMS <7nm
Ra Up to 1nm
Coating Al, Ag, Au & High Laser Damage Threshold Dielectic as needed
Design Services Optical, FEA, Dynamic & Thermal Analysis
We can provide customized service according to specific customer requirements.

TECHNICAL STRENGTH

6061-Al alloy Mirror:

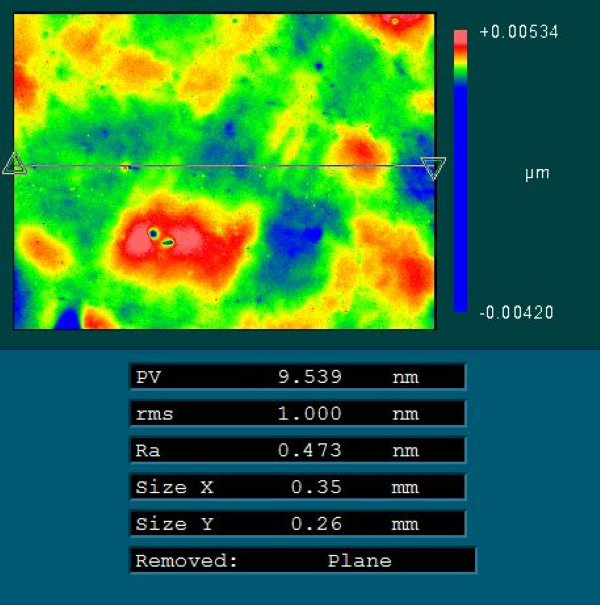

RMS<1nm
Ra <2.5nm(tested by white light interferometer, Tenfold eyepiece)


Ni-P alloy Mirror:
RMS<1nm
Diameter: up to 600mm

Ultra-Smooth Process VS traditional process

surface Roughnesssurface result-microscope

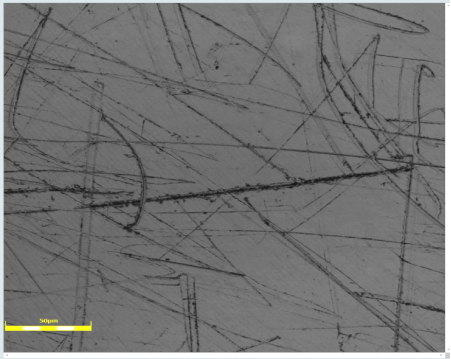

              traditional process surface(microscope)                                         ultra-smooth process surface (microscope)

polishing techniqueAl mirror polishing technique

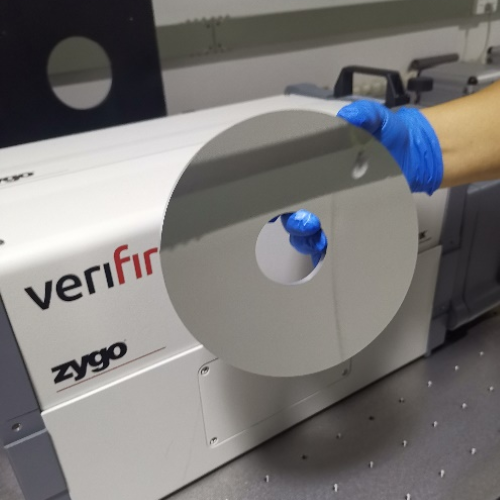

                    Diamond Turning Lathe result                                                             ultra-smooth process result

MG-Optics obtained the high-precison metallic mirror ultra-smooth machining and polishing techniques, professional in RSA-6061 aluminum mirror, Just send us your technical specifications, quotation will be provided soon.


Ordering Information

MG-Optics will also provide you optical aspheric mirror, Optical Flat, Optical Metrology, custom CGH, Optical System and Optical Mirror Blank

If you are interested with our products, Just send us your drawings or specifications, we will begin preparing a quotation for you.

Contact with our professional technician engineer now!

MG-Optics is a high-precision optical components manufacturer, specialized in providing custom solutions of large-aperture aspheric mirrors, optical metrology, optical system integrating design, manufacturing, assembly and testing. MG-Optics is established in 2019, located in Foshan City, the center of Gugangdong-Hongkong-Macao Greater Bay area, with 2,500 square meters workshop. Team is led by Dr. Songchi, an associate research fellow in CIOMP, majored in Optical Engineering. There are 5 doctors and 2 masters team members with over 20 years of experience in optical manufacturing and testing. Certificates: GB/T 19001-2016 idt ISO9001:2015 Standard Production of Optical lens and mirrors 3 utility patent certificates 2 Invention patent certificates Guang Dong high-tech Enterprise Certificate Clients: Institutions: CIOMP, Xian Institutes of Optics and Fine Mechanics, China Academy of Engineering Physics; Hefei Institutes of Physical Science University: Zhejiang University, Zhongshan University, Jilin University, Huazhong University of Science and Technology, Beijing Institute of Technology Overseas: Korea, Japan, Austria, Belguim
