JGS2 telescope mirror blank; Precision Annealed Quartz Astronomical Mirror
Fused silica lightweight blank
Product Description

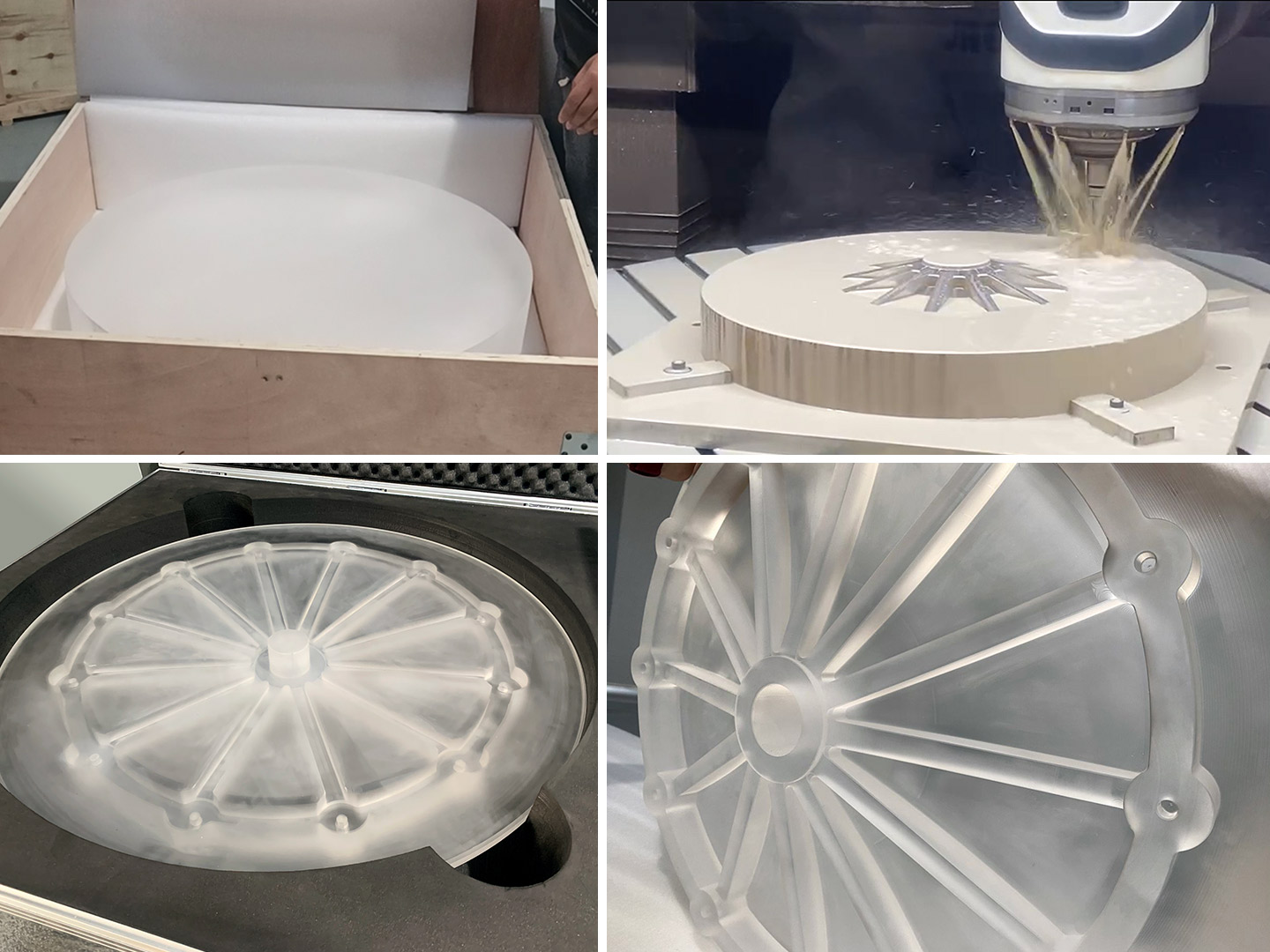

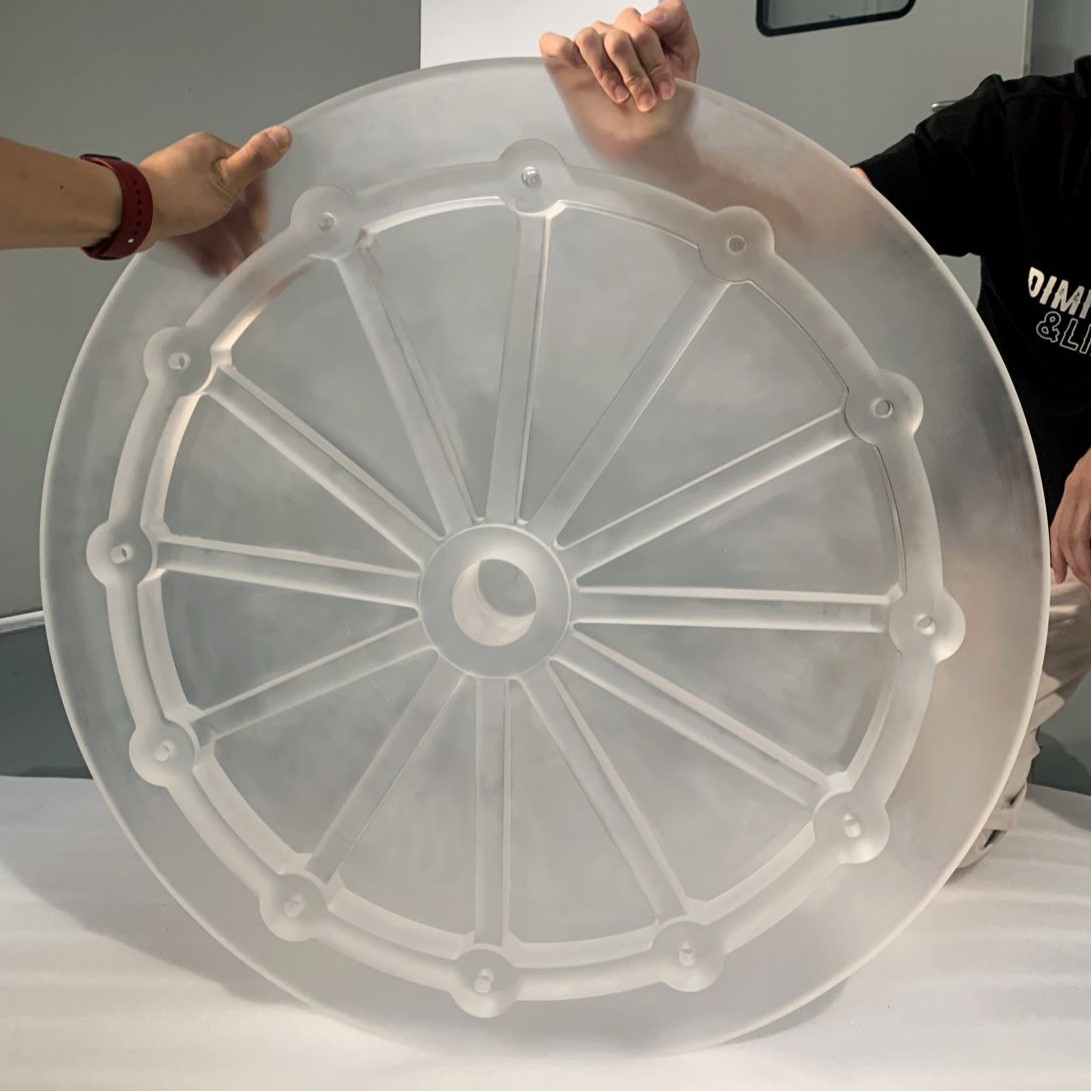

This is a fused silica JGS2 lightweight blank with diameter of 736mm. The raw material weighs 100KG, after machining, the lightweight blank is about 44.5KG. The back structure is a little bit complicated which makes the good balance of the overall stiffness and the less weight of the whole mirror. MG-Optics can not only provide the customized manufacturing Optical Mirror Blank according to drawings but also the designing for the lightweight structure. The maximum machine diameter is 1500mm.

Product Specification

MATERIAL

Fused silica JGS2

Test report

OUTER DIAMETER

F736mm +/- 1 mm

CMM test report

THICKNESS

F126mm 0/+1 mm

CMM test report

CENTER HOLE

F56 mm 0/+0.05 mm

CMM test report

EDGE HOLE

F11 mm 0/+0.05 mm

CMM test report

MIRROR RADIUS

R4177.5mm+/- 50 mm

CMM test report

TOP SIDE FINISHING

D20 machined

DMG Mori 125P



Material Description

 JGS2 fused silica material has been one of the best choices for Telescope Mirror Blank with its cost-effective price and stable optical performance.

Mechanical Properties

Thermal Properties

Density

2.2 g/cm³

Strain Point

1085 ℃

Compressive Strength

1100 Mpa

Softening Point

1640 ℃

Bending Strength

67 Mpa

Annealing Point

1190 ℃

Tensil Strength

48 Mpa

Specific Heat(20~350℃)

670 J/(kg·℃)

Poisson Ratio

0.14~0.17

Thermal Conductivity(20℃)

1.4 W/(m·℃)

Young's Modulus

73000 Mpa

Thermal Expansion Coefficient

5.5x10¯⁷cm/cm·℃

Rigidity Modulus

31000 Mpa

Hot Working Temperature

1700~2000 ℃

Mohs Hardness

6~7

Short Service Temperature

1300 ℃

The SiO2 content of JGS2 is greater than 99.95%, so it is also called pure glass.

The outstanding mechanical, thermal properties and high purity with low density makes JGS2 lightweight blank widely used in large aperture telescope mirrors.



Custom Ordering Information

MG-Optics fused silica lightweight blank includes fused silica JGS1, JGS2, Corning 7980, N-BK7, K9, ULE, Clearceram and other fused quartz materials. MG-Optics can manufacture Custom Lightweight Blank as per your drawings and especially, offer the lightweight structure design.

If you are interested with our products, just send us your drawings or specifications, we will begin preparing a quotation for you.

Contact with our professional technician engineer now!

custom telescope mirror blank
