Large optical flat mirror
Large optical flat mirror
Large optical flat mirror
Large optical flat mirror
Large optical flat mirror
Large optical flat mirror
Large optical flat mirror
Large optical flat mirror

Large optical flat mirror

Get Latest Price
Payment Type:T/T
Incoterm:FOB,CFR,CIF,EXW,FCA
Min. Order:1 Piece/Pieces
Transportation:Ocean,Land,Air,Express
Product Attributes

Place Of OriginChina

MaterialFused Silica JGS1,JGS2, Zerodur, ULE, N-BK7, K9

Size50-1000mm

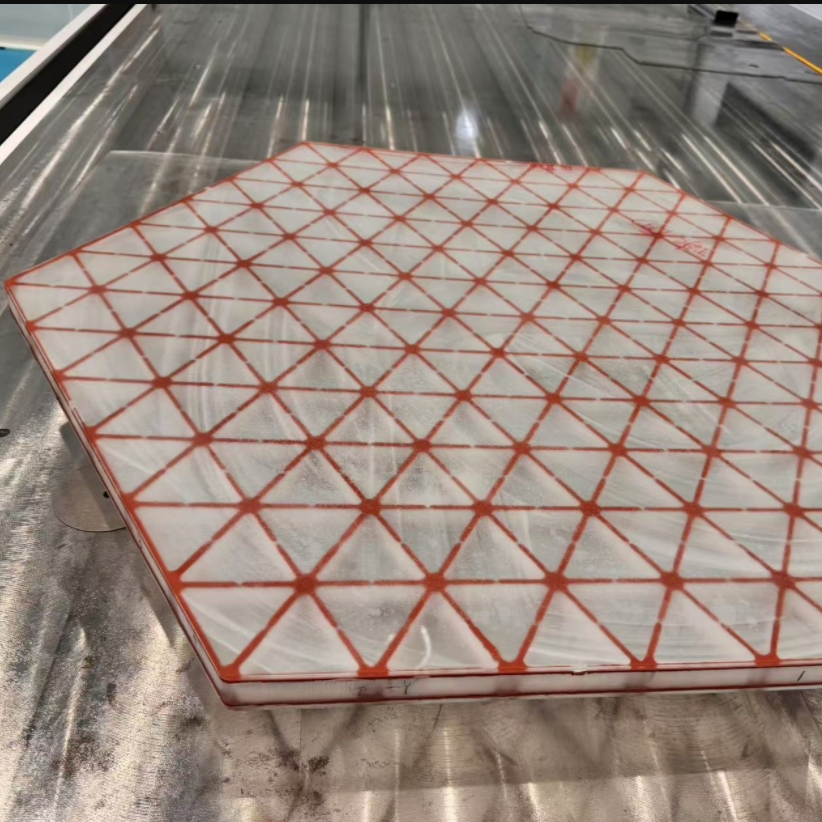

Typescircular, square, elliptical flat, custom lightweight

Packaging & Delivery
Selling Units : Piece/Pieces
Picture Example :

The file is encrypted. Please fill in the following information to continue accessing it

JGS2 telescope mirror blank; Precision Annealed Quartz Astronomical Mirror
Ion Beam figuring for high precision optics
Product Description
Large optical flats are precision Optical Components that play a critical role in various applications requiring high levels of optical flatness and accuracy. These components are typically used in interferometry, laser optics, precision Optical Metrology, and other scientific and industrial setups where highly accurate measurements or the manipulation of light waves is necessary. MG-Optics manufactures custom high-precision large aperture flat mirrors in a range of sizes from 50mm to 600mm. Materials include fused silica JGS2, quartz, ULE, Zerodur, K9, N-BK7. RMS can reach 0.04 wavelength or better.



Specifications

 Material  Fused Silica JGS1,JGS2, Zerodur, ULE, N-BK7, K9
 Size  50-1000mm
 Types  circular, square, elliptical flat, custom lightweight
 Clear Aperture   90%
 Dimensional Tolerances  ± 0.1mm
 Parallelism  <1 arc second
 Transmitted Wavefront   λ/20 at 632.8nm
 Surface Quality  10-5
 Chamfer  1.0-3.0 mm at 45°
 Coatings  anti-reflection, dielectric films, custom optical coating

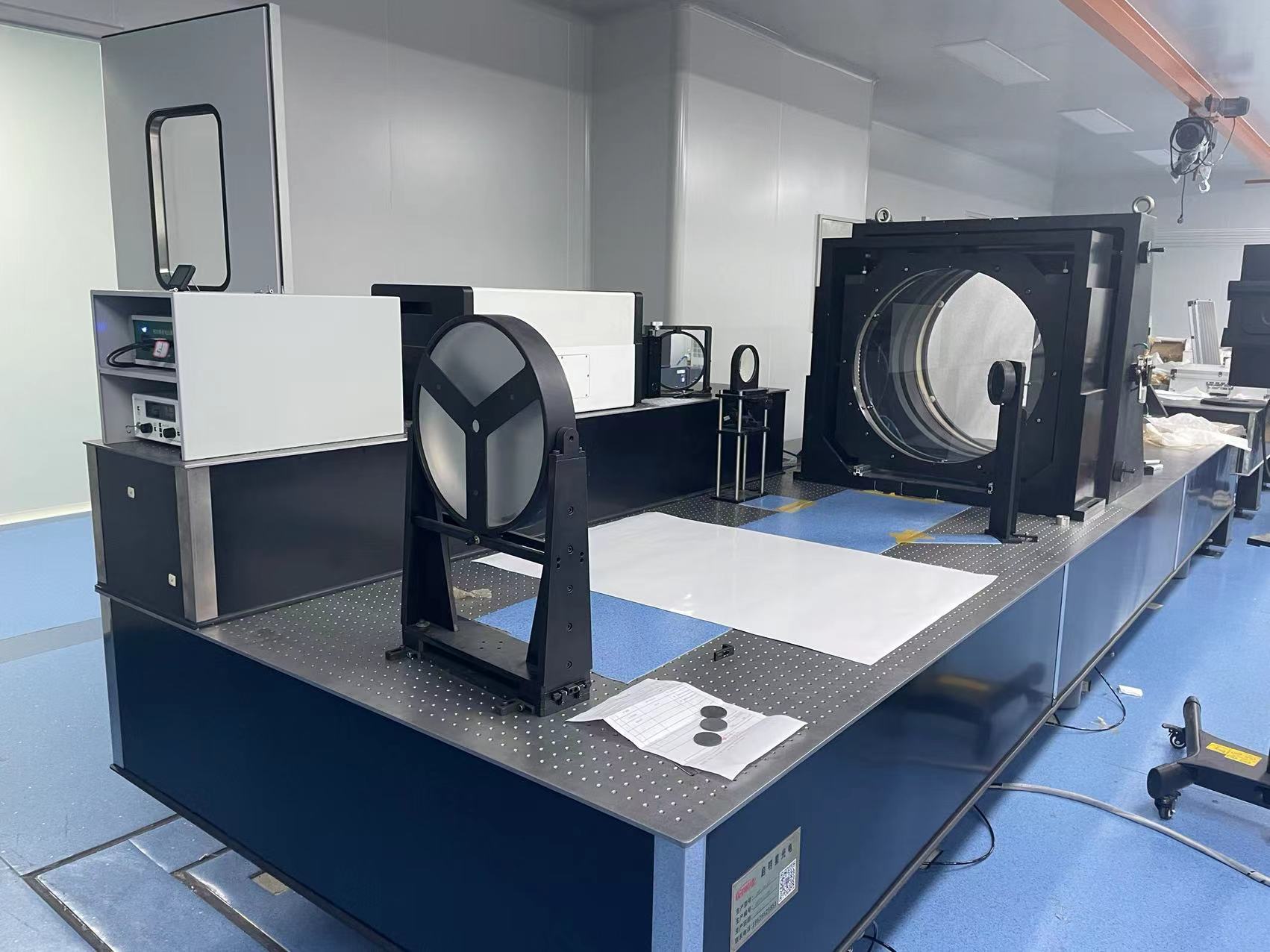

For testing, we will use horizontal 24" (600mm) Zygo interferometer to measure surface accuracy such as PV and RMS.

zygo interferometer 24


Ordering Information
MG-Optics will also provide you Optical Window, such as Parallel Window,Brewster Window.
If you are interested with our products, Just send us your drawings or specifications, we will begin preparing a quotation for you.
Contact with our professional technician engineer now!
