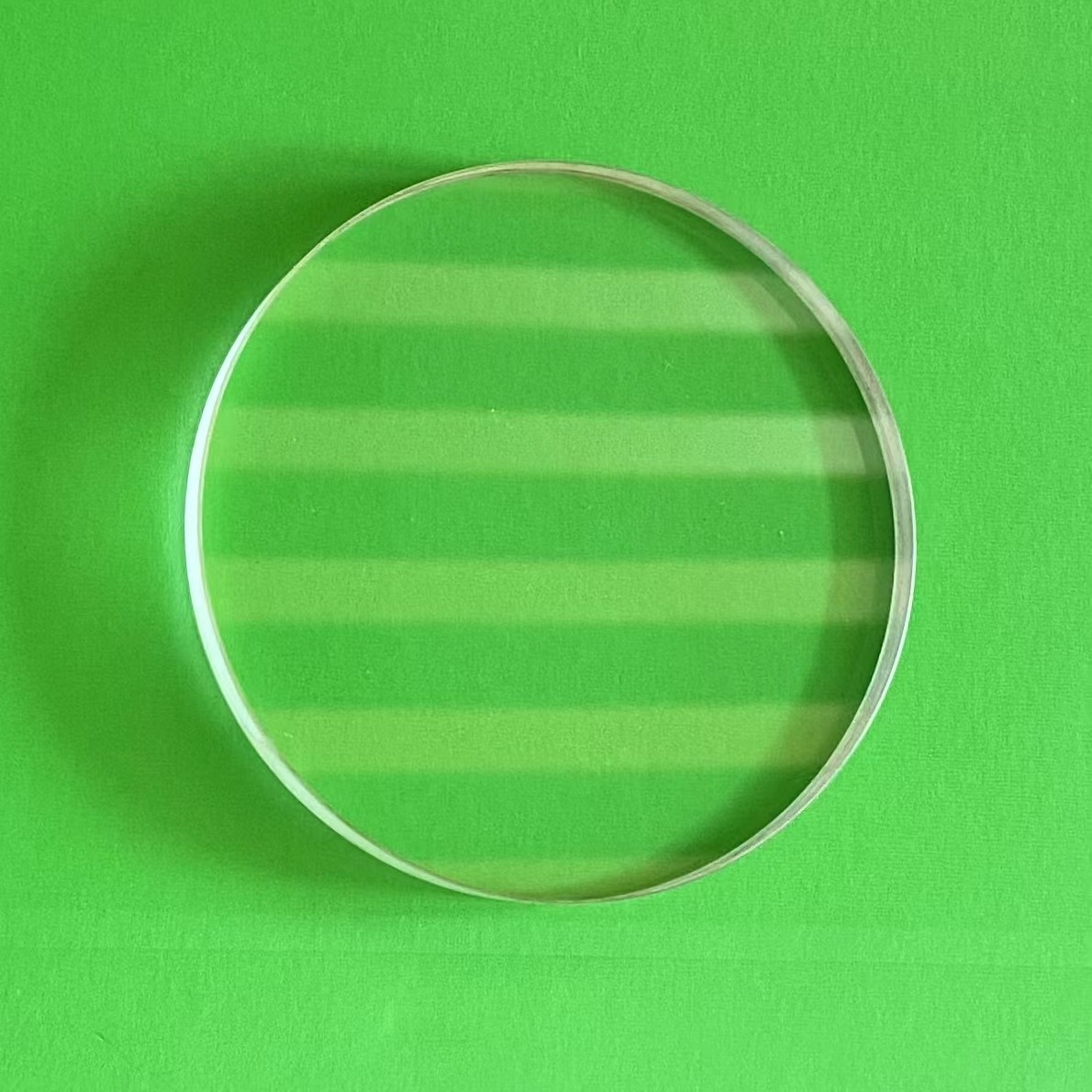

ZnS aspheric lens combines the benefits of zinc sulfide material, known for its IR transparency and durability, with the advantages of aspheric geometry, which minimizes aberrations. These lenses are essential Optical Components in a variety of IR imaging and laser systems, offering superior performance and reliability in challenging environments. As one of the main products of IR And UV Optics, MG-optics can custom design to specific requirements for focal length, numerical aperture, and working distance, making them versatile for your Optical System.
Optical Properties:
1. High Transmittance: Offers excellent transmission of IR light, typically from about 5-15 µm wavelength.
2.Low Absorption: Minimizes energy loss due to absorption, ensuring efficient light transmission.
3. High Refractive Index: Helps in focusing light more effectively compared to materials with lower refractive indices.
4. Surface Quality: Precision Grinding and Polishing Ensures high surface quality and minimal surface roughness, which is critical for maintaining optimal optical performance.
5. Coatings: Often coated with anti-reflection (AR) coatings to further enhance transmittance and reduce reflections.
Specification
| Material | ZnS | |||||
| Specification | Customized | |||||
| Diameter Range | 12mm～450mm | |||||
| Aspheric turning diameter | 12mm～200mm | |||||
| Diameter Tolerance | 0.05mm | |||||
| Center Thickness Tolerance | 0.02mm | |||||
| Surface Quality | 20/10、10/5 | |||||
| Surface Accuracy | PV λ/10、λ/20 | |||||
| Surface Roughness | Ra≤0.04μm | |||||
MG-Optics will also provide you optical Aspheric Mirror, Optical Flat and Optical Mirror Blank.
If you are interested with our products, Just send us your drawings or specifications, we will begin preparing a quotation for you.
