Mirrorganize Optical Technology (Foshan) Co.,Ltd
| Incoterm: | FOB,CIF,EXW,FCA,Express Delivery |
| Transportation: | Ocean,Land,Air,Express |
Place Of Origin: China
Size: 50-2000mm
Shape: sphere, asphere,on-axis asphric mirror;off-axis aspheric mirror;off-axis parabola mirror(OAP); freeform optics;hyperboloid mirror;ellipsoids
Lightweight: custom specified
RMS: 1/100λ
| Selling Units | : | Piece/Pieces |

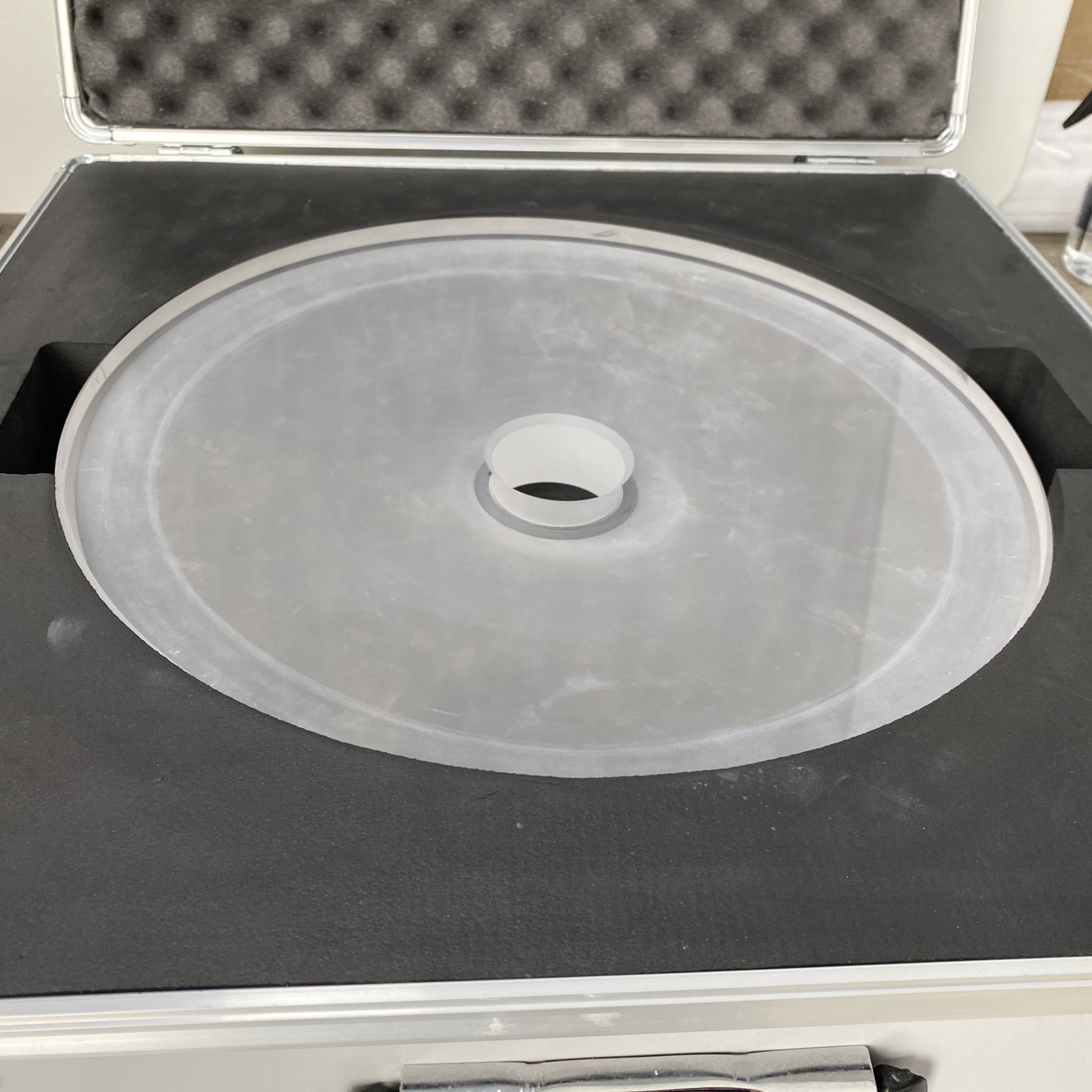

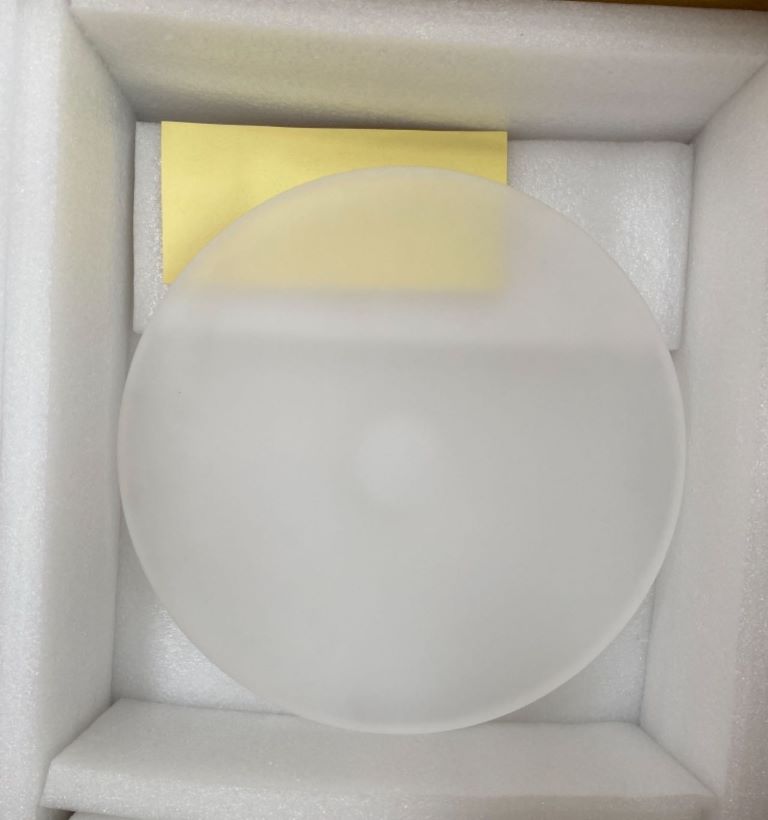

| Package Type | : | aluminum alloy box, wooden box |
| Picture Example | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
MG-Optics has rich experience in custom precision Optical Components manufacture and metrology. fused silica JGS2 aspheric mirror is commonly used in telescope mirror systems.
Large aperture JGS2 mirror is one of our main products, the diameter can reach 2000mm. We can also design and manufacture custom CGH for optical metrology, surface accuracy can achieve 1/100 wavelength or better.
Material Description
JGS2 fused silica material has been one of the best choices for astronomical telescope mirrors with its cost-effective price and stable optical performance.
The mechanical and thermal properties are as follows:
| Mechanical Properties | Thermal Properties | ||
| Density | 2.2 g/cm³ | Strain Point | 1085 ℃ |
| Compressive Strength | 1100 Mpa | Softening Point | 1640 ℃ |
| Bending Strength | 67 Mpa | Annealing Point | 1190 ℃ |
| Tensil Strength | 48 Mpa | Specific Heat（20~350℃） | 670 J/(kg·℃) |
| Poisson Ratio | 0.14~0.17 | Thermal Conductivity（20℃） | 1.4 W/(m·℃) |
| Young's Modulus | 73000 Mpa | Thermal Expansion Coefficient | 5.5x10¯⁷cm/cm·℃ |
| Rigidity Modulus | 31000 Mpa | Hot Working Temperature | 1700~2000 ℃ |
| Mohs Hardness | 6~7 | Short Service Temperature | 1300 ℃ |
The SiO2 content of JGS2 is greater than 99.95%, so it is also called pure glass.
PRODUCT SPECIFICATIONS
| FEATURES | SPECIFICATIONS |
| Shape | Optical Flat, Sphere, Asphere, ractangle, square, cylinder, custom specification |
| Size | 50mm-2000mm |
| Surface Accuracy | 1/100λ RMS or better |
| Roughness | up to 1nm |
| Coating | Al, Ag, Au&High laser damage threshold dielectic as needed |
| Design Services | Optical FEA Dynamic & Thermal Analysis |
| Test Report | ZMM dimension report, Interferogram for surface accuracy, roughness test report |
Ordering Information
If you are interested with our products, Just send us your drawings or specifications, we will begin preparing a quotation for you.
Contact with our professional technician engineer now!
