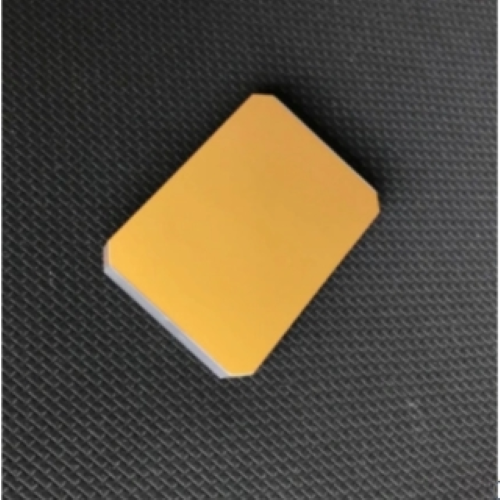

Silicon carbide SiC Mirror is light weight, high strength, high stiffness, high thermal conductivity and thermal stability. Ideal for larger telescopes, high-speed scanning systems and space applications and where instrument weight and thermal stability is important. High thermal stability and good mechanical properties enable silicon carbide (SiC) mirrors to be used in high temperature environments. MG-Optics produce ultra-thin flat silicon carbide mirror with high precision and custom lightweight manufacturing for laser scanning Optical System.
TECHNOLOGY STRENGTH
Advanced gel injection molding technology
Formula of high-solid phase low-viscosity gel injection molding slurry
solid content of silicon carbide slurry > 69.5%
Viscosity< 1.5Pa.s which meets the requirements of 2mm channel casting.
Curing time in 1 hour Dry strength >26MPa.
Mature stamping and casting forming technology.
Lost Foam casting technology
Low-stress crackless drying process of RB-SiC
Smooth drying process by stages with flawless surface
Cost-effective with high performance, deformation<1%
Large dimension forming blank
Specifications
| Size | 50 mm – 1000 mm |
| Surface Shape | Flat |
| Surface Flatness | up to λ/100 RMS |
| Coatings | Al, Ag, Au & High Laser Damage Threshold Dielectric Coatings as needed |
| Lightweight SiC Mirror Applications | Telescopes, Laser Scanning Systems, etc. |
MG-Optics will also provide you other Optical Components, optical aspheric mirror, Optical Flat, Optical Mirror Blank and custom CGH.
If you are interested with our products, Just send us your drawings or specifications, we will begin preparing a quotation for you.
