Laser collimation and beam expansion system
Get Latest PriceMin. Order: | 1 Set/Sets |
Place Of Origin: China
Selling Units | : | Set/Sets |
The file is encrypted. Please fill in the following information to continue accessing it
Wavelength | 1064nm |
Entrance pupil diameter | 300mm |
Exit pupil diameter | 4mm |
Magnification | 75× |
Field of view | ±200urad |
Total length | 1099mm |
Diameter | φ400mm |
The whole optical system Exit Pupil wavefront error full aperture RMS is better thanλ/10(λ=633nm); ±30μrad RMS better than λ/15(λ=633nm)
Primary mirror: Off Axis Parabolic Mirror
Secondary mirror:Hyperboloid mirror
M3:freeform mirror
M4:flat mirror

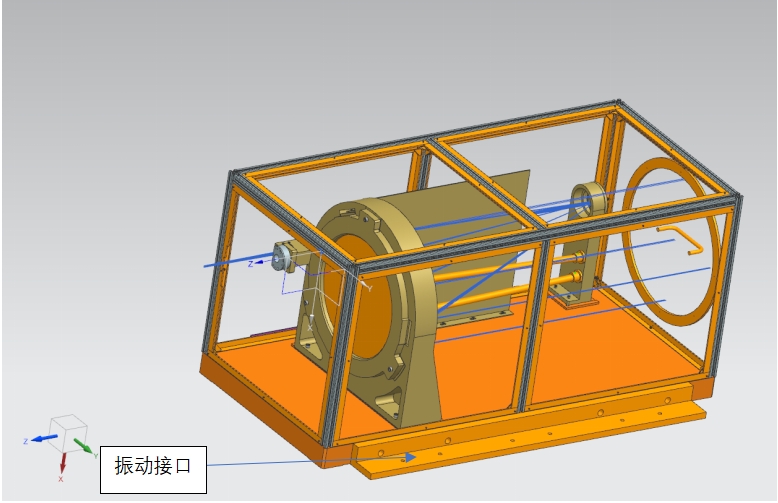

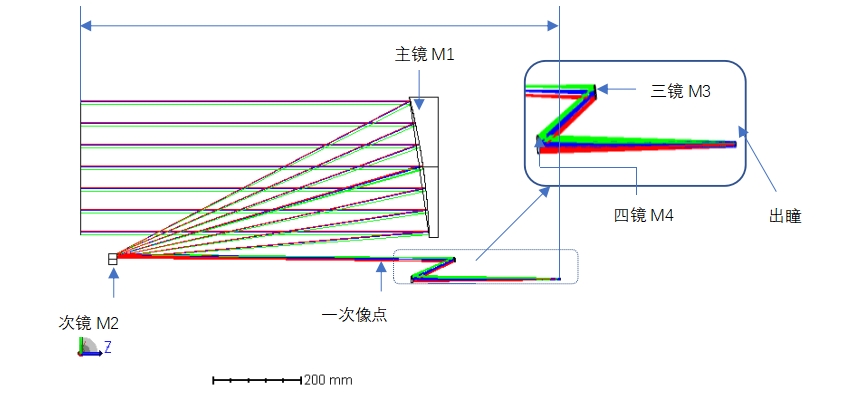

The optical and structure design diagram

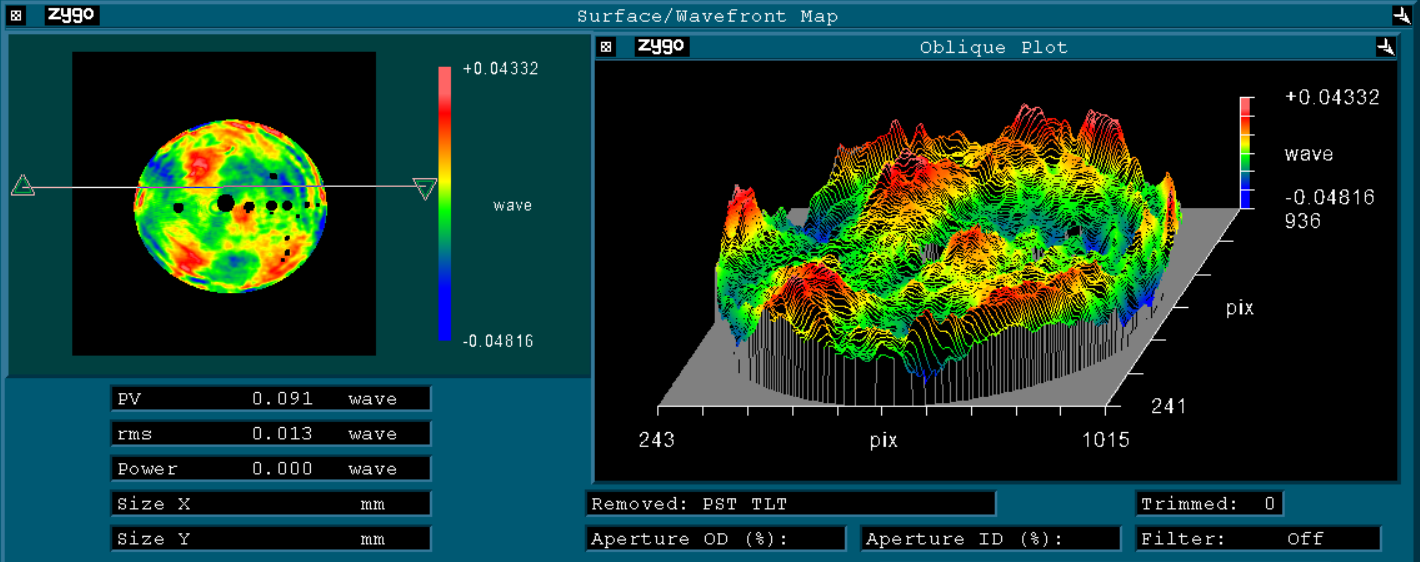

The primary mirror surface accuracy test
MG-Optics is bringing new and novel optics solutions, especially complex optical system. From optical design services to custom fabrication of precision complex optics including aspheres, freeforms, off-axis sections and optical system alignment and Optical Metrology.
Just send us your drawings or specifications, we will begin preparing a quotation for you.
Contact with our professional technician engineer now!
