Silicon modification layer coating
Silicon modification layer coating
Silicon modification layer coating
Silicon modification layer coating
Silicon modification layer coating

Silicon modification layer coating

Get Latest Price
Min. Order:1 Piece/Pieces
Transportation:Ocean,Land,Air,Express
Product Attributes

Place Of OriginChina

Packaging & Delivery
Selling Units : Piece/Pieces

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

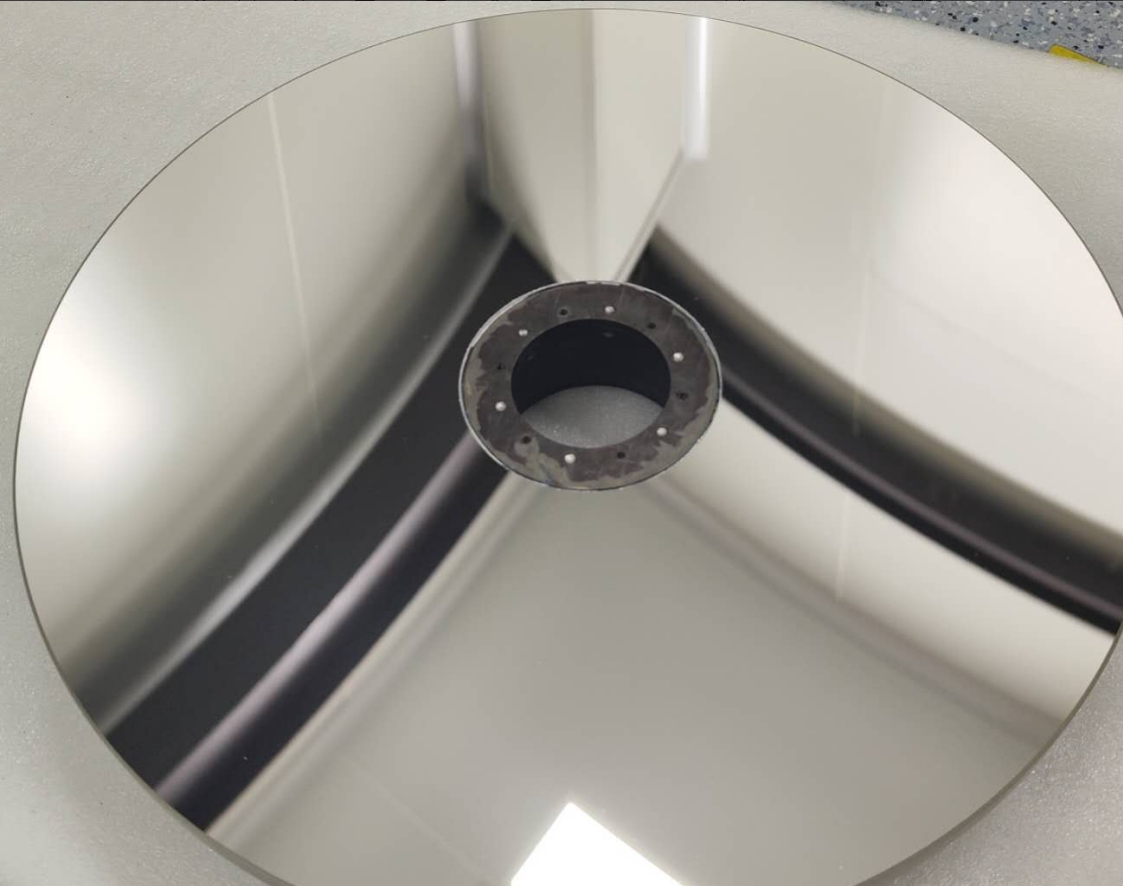

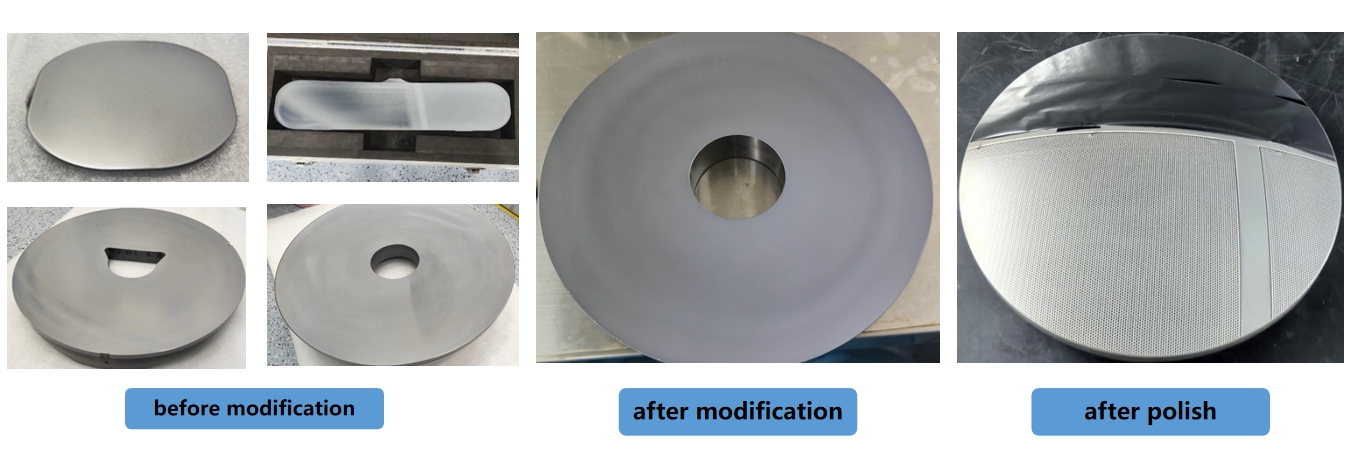

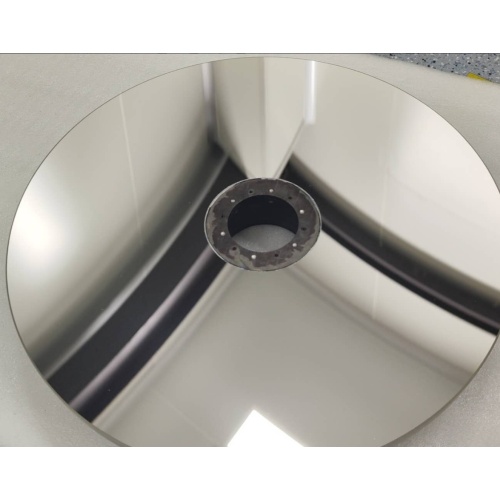

The Silicon Modification Layer Coating on silicon carbide(SiC) surface involves depositing a layer of silicon film on the surface of SiC Optical Components to improve surface quality and surface roughness. This is a necessary step in the manufacturing process of SiC optical components.

Dimension tolerance ±0.1mm
Coating range 95%-100% full aperture coating
Coating thickness uniformity ±1%
Diameter Up to 800mm
Surface roughness  Ra≤1nm
Surface accuracy 1/100λ
Si-film thickness up to 20um
Scratch/dig 60/40

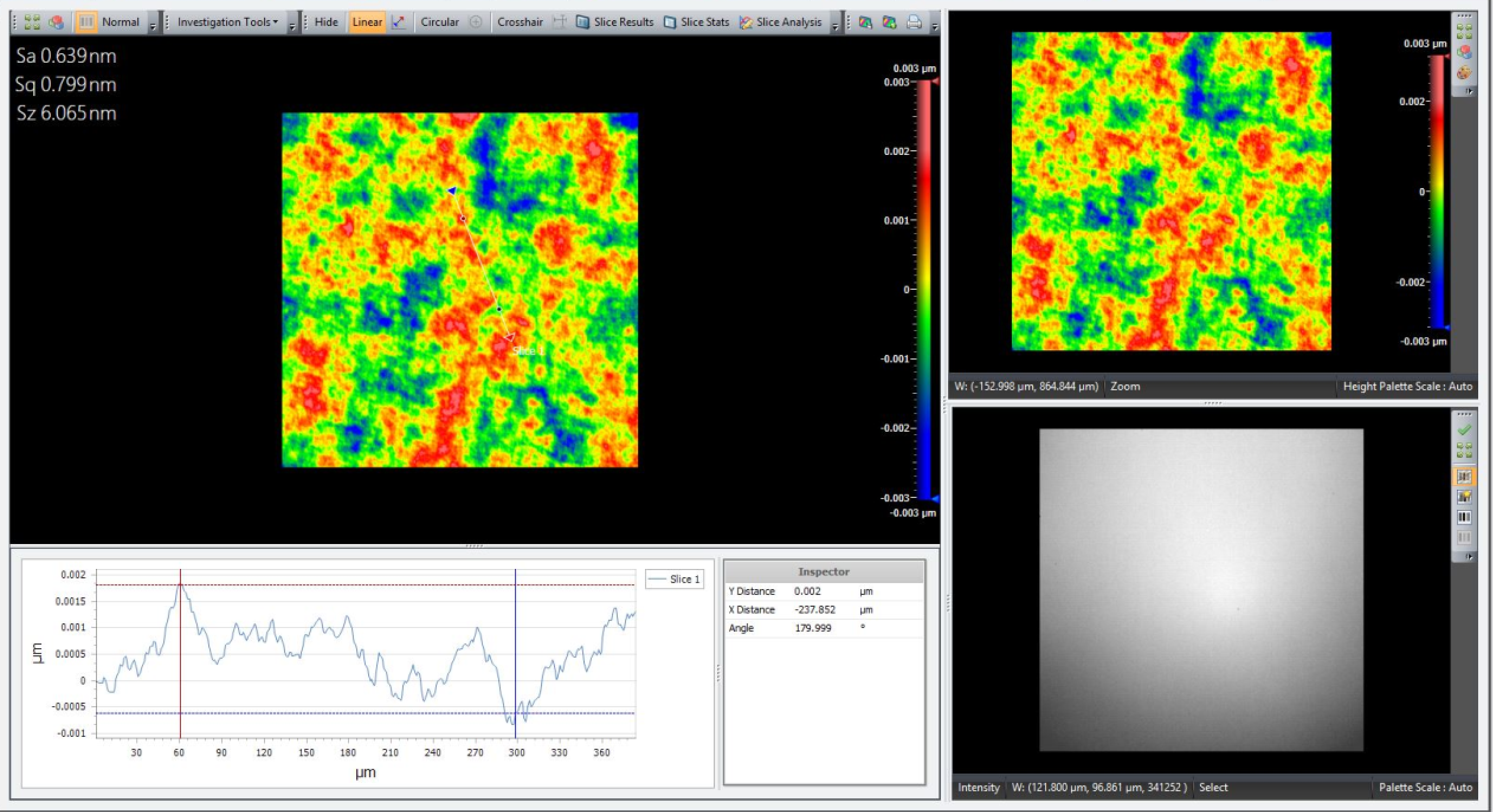

surface roughness

Unlike CVD modification technology, MG-Optics adopts PVD modification, which not only enhances modification efficiency while ensuring the quality of the modification coating but also reduces costs, enabling mass production. https://www.mg-optics.com/metal-film/
