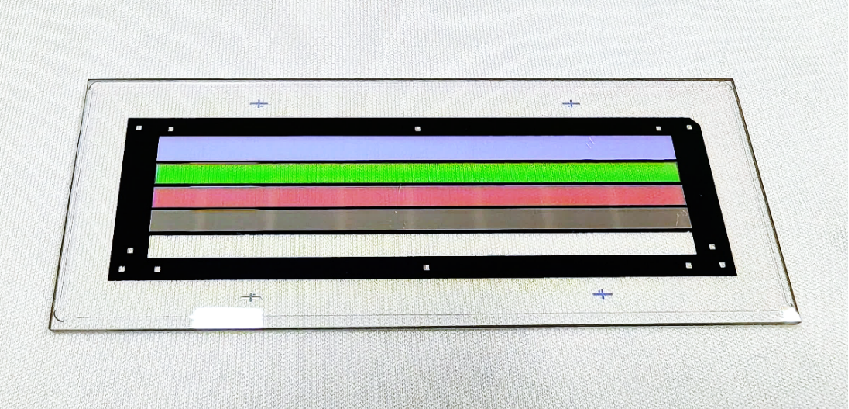

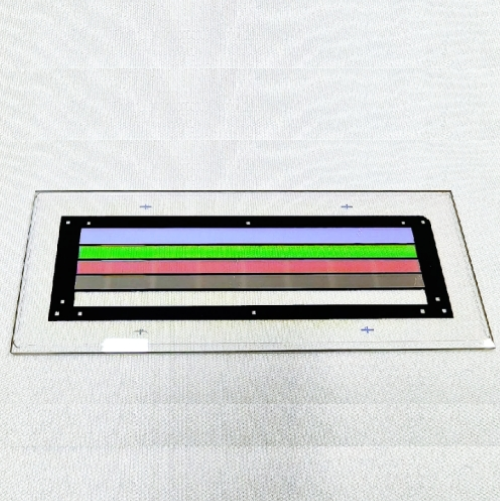

A five-channel multicolor Optical Filter is a critical component in optical systems, capable of simultaneously processing five distinct wavelength channels. It is widely used in multispectral imaging, fluorescence microscopy, remote sensing, environmental monitoring, and other fields.
| Parameter | Specifications |
|---|---|
| Substrate Material | K9, BK7, Quartz, Sapphire, etc. |
| Surface Figure | N1, Local Irregularity ≤0.5λ |
| Parallelism | ≤20″ |
| Number of Channels | 2–16 channels |
| Surface Quality | 20/10 |
| Pattern Alignment | ±0.01 mm |
| Extinction Coating | Reflectivity <0.05% |
| Minimum Channel Spacing | 0.2 mm |
| Field | Application Scenarios |
|---|---|
| Multispectral Imaging | Remote sensing, geological exploration, precision agriculture; multi-channel spectral data acquisition for enhanced classification accuracy. |
| Industrial Inspection | Semiconductor defect detection, pharmaceutical packaging; real-time multi-channel monitoring of production line parameters. |
| Biomedical Imaging | Multi-fluorescence labeling (e.g., GFP, RFP, Cy5), flow cytometry; high-throughput biomarker analysis. |
| Environment & Security | Multi-component atmospheric pollutant monitoring, trace explosive detection; rapid response and high-sensitivity identification. |
| LiDAR Systems | Multi-wavelength beam separation and filtering; improved target detection in complex environments. |
Full Parameter Flexibility: Customize channel count, wavelength bands, spectral profiles (rectangular/Gaussian/custom), substrate material, and dimensions.
Rapid Prototyping: Spectral performance testing and iterative optimization supported.
Full-Process Inspection:
Surface figure: White-light interferometry.

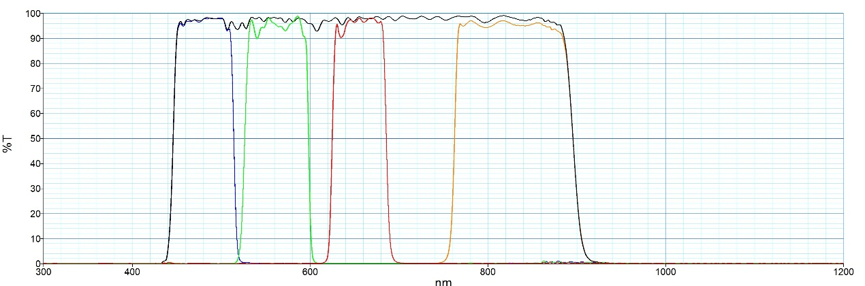

Spectral performance: High-resolution spectrometer (350–5000 nm).
Surface roughness: Strict quality control.
Extreme Environment Testing:
vibration/shock resistance.
85°C/85% RH damp heat aging.
1000-cycle thermal shock testing.
Certifications:
ISO 9001 compliant.
