Zygo laser interferometer measurement metrics for optical components

Zygo laser interferometer measurement metrics for Optical Components:

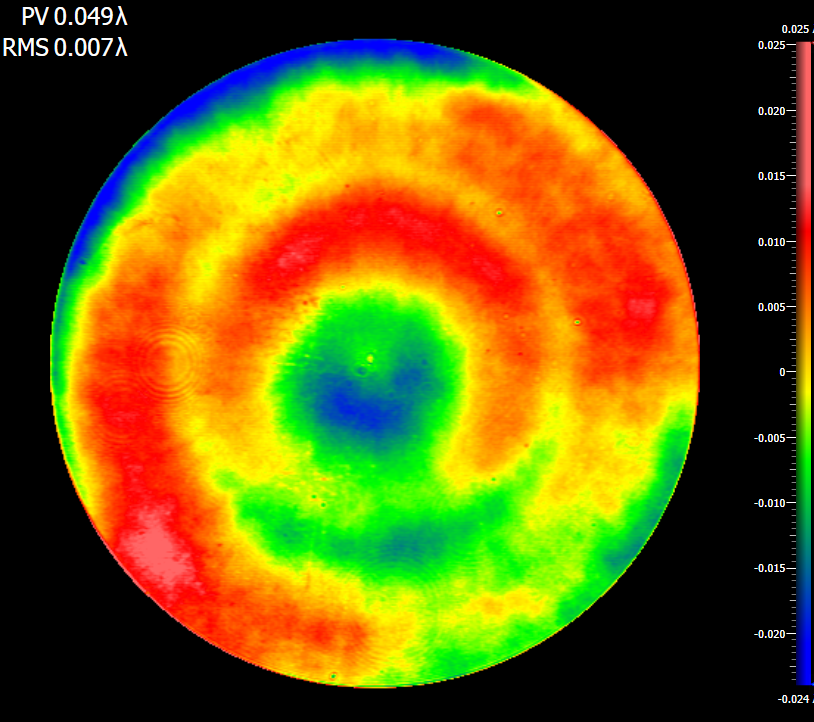

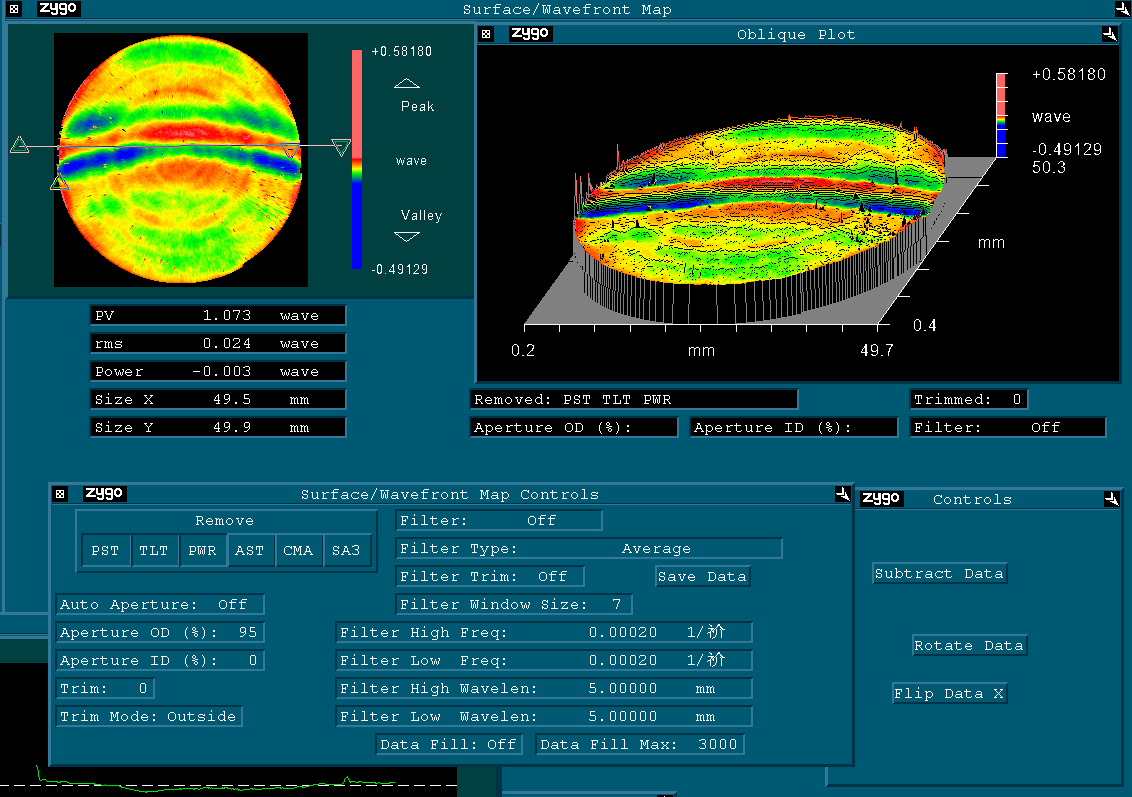

1. PV (Peak-to-Valley)

 Definition: Vertical distance between the highest and lowest points on the surface.

 Physical Meaning: Reflects the maximum local error, directly indicating machining precision.

 Note: PV is sensitive to outliers (e.g., scratches or defects) and should be evaluated alongside other metrics.

 Typical Requirement: High-precision optics (e.g., laser mirrors) often require PV < λ/10 (λ = 632.8 nm).Advantage: Less sensitive to local noise, providing a stable measure of global quality.

2. RMS (Root Mean Square)

Definition: Root mean square of deviations between all surface points and the ideal shape.

Physical Meaning: Represents the average level of overall surface error, directly linked to wavefront distortion in optical systems.

Advantage: Less sensitive to local noise, providing a stable measure of global quality.

Typical Requirement: Precision systems (e.g., telescopes) often demand RMS < λ/20–λ/50.

3. Strehl Ratio

Definition: Ratio of the peak intensity of a real Optical System to that of an ideal diffraction-limited system.

Physical Meaning: Quantifies imaging quality; values closer to 1 indicate higher performance.

Relationship with RMS: Higher RMS reduces Strehl Ratio. Empirical formula:
Strehl Ratio ≈ exp[−(2π·RMS/λ)²].

4. Power (Curvature Deviation)

Definition: Deviation of the overall curvature from the designed shape (spherical/aspheric).

Physical Meaning: Reflects errors in focal length or radius of curvature due to machining.

Impact: Excessive Power causes focal shift or increased aberrations.

5. Astigmatism

Definition: Aberration caused by mismatched curvature in orthogonal axes (e.g., X/Y).

Physical Meaning: Often arises from asymmetric machining errors or mounting stress.

Visual Clue: Elliptical or saddle-shaped interference fringes.

6. Coma

Definition: Asymmetric error leading to comet-like trailing in off-axis imaging.

Physical Meaning: Typically caused by uneven tool paths or mounting tilt during fabrication.

Common Scenarios: Off-axis optics or large-aperture mirrors are prone to coma.

7. Surface Roughness

Definition: Microscopic irregularities, quantified as Sa (arithmetic average) or Sq (RMS roughness).

Physical Meaning: Affects scattering loss, laser-induced damage threshold, etc.

Measurement: Zygo interferometers often use white-light interferometry (e.g., Mirau objectives).

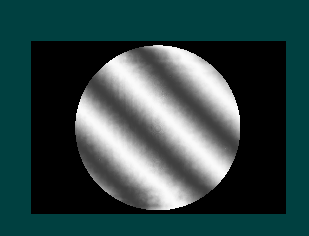

8. Fringes

Definition: Number of bright/dark bands in interferograms; 1 fringe = λ/2 optical path difference.

Physical Meaning: Visualizes the gradient distribution of surface errors.

Application: Dense fringes indicate steep error gradients (e.g., machining defects or mounting strain).

9. Zernike Polynomial Coefficients

Definition: Coefficients from Zernike polynomial decomposition of surface errors (e.g., defocus, astigmatism, spherical aberration).

Physical Meaning: Quantifies error composition to guide process optimization (e.g., correcting specific aberration terms).

10. Fit Error

Definition: Residual error after least-squares fitting of measured data to the ideal surface (spherical/aspheric/planar).

Physical Meaning: Indicates how well the manufactured shape matches the design, critical for system-level performance.

Summary & Recommendations

Holistic Analysis: Prioritize PV and RMS but analyze aberration types (astigmatism/coma) to identify error sources.

Process Adjustment: High RMS may require repolishing; localized PV spikes suggest tooling or mounting issues.

Application Alignment: Tailor requirements (e.g., laser systems prioritize roughness, imaging systems focus on Strehl Ratio).

Cross-Validation: Use complementary tools (e.g., profilometers, white-light interferometers) for roughness verification.

By interpreting these metrics, engineers can pinpoint fabrication flaws, refine processes, and ensure optical components meet system-level specifications.
